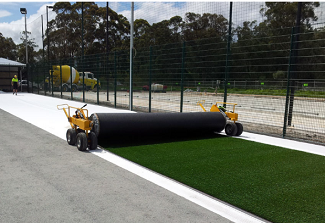

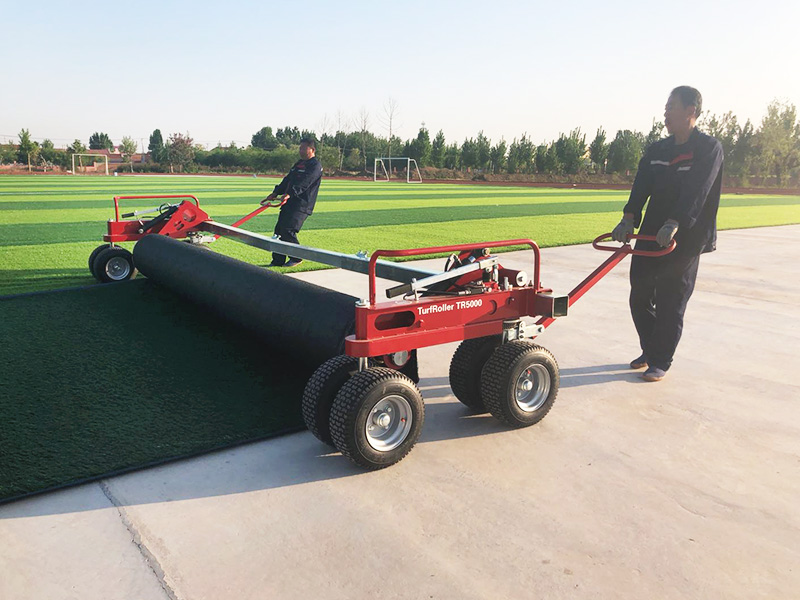

Turf roller, also named turf carrier, is used to transport and spread the artificial grass rolls on the field. It can effectively save labor and time when installing artificial grass.
Specification:
- Name: Turf Roller
- Work width: 1m to 5m
- Lift height: 1.2m
- Lift weight: 2000kg
- Machine weight: 250kg
- Machine dimension: 1300mmx1100mx1300m
Features:
- This machine can transport and spread out artificial turf rolls with a width up to 5m. This working width is suitable for any turf rolls at present in this industry. Especially for the US market, it is ideal for the rolls of 15 feet width or bigger width.

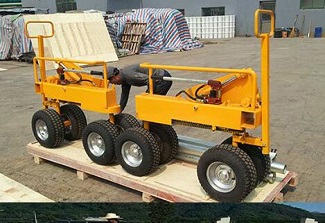

- This machine has two independent carts. Each cart has two pairs of rotatable tires, which can be controlled by both of the pull rod and tire rod.
- This two carts are connected by the square tube,accordingly the four pairs of wheels can simultaneously stressed to ensure that the ground pressure is small.That’s why the machine can transport the aritificial turf rolls effortlessly.
- Both of this two carts are equipped with hydraulic power lifting devices and each of them containsa hand pump and hydraulic cylinder, which allows the axle to lift artificial grass rolls very easily.
