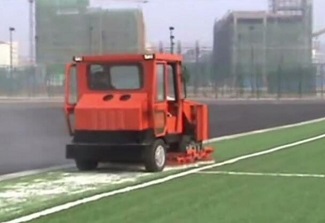

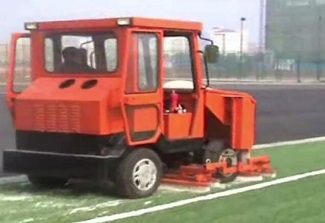

- This ride-on sand filling and brush machine is used to infill and brush the silica sand or rubber granules into the artificial grass. It can infill the materials quickly and homogeneously,which greatly improves the work efficiency.
- This automatic sand filling and brush machine works by combination of machinery and hydraulics. It is powered by the diesel engine. The movement of this machine is mechanical transmission and accordingly the filling and brush function is controlled by hydraulics.
- The machine can move one to twenty meters when working. The speed can be adjusted by the gears.The silica and and rubber materials is transmitted by conveyor belt, then the oscillating brush will brush the silica or rubber granules into the bottom of the grass fibers. The equally distributed silica can effectively fix the grass fibers and make it straight, and the rubber granules will provide sufficient elasticity on the fields and protect players from inquiry.
Specifications:
- Name: Ride-on infill and brush machine
- Power system: Diesel/16.18KW/22HP
- Infill width: 1300mm
- Weight: 1500kg
- Loading capacity: 800-1000kg
- Moving speed: 1-20m/minute(As per set speed)
- Dimension:2900Lx1800Wx2100H
Features:
- This machine is powered by diesel engine with a performance of 15HP.

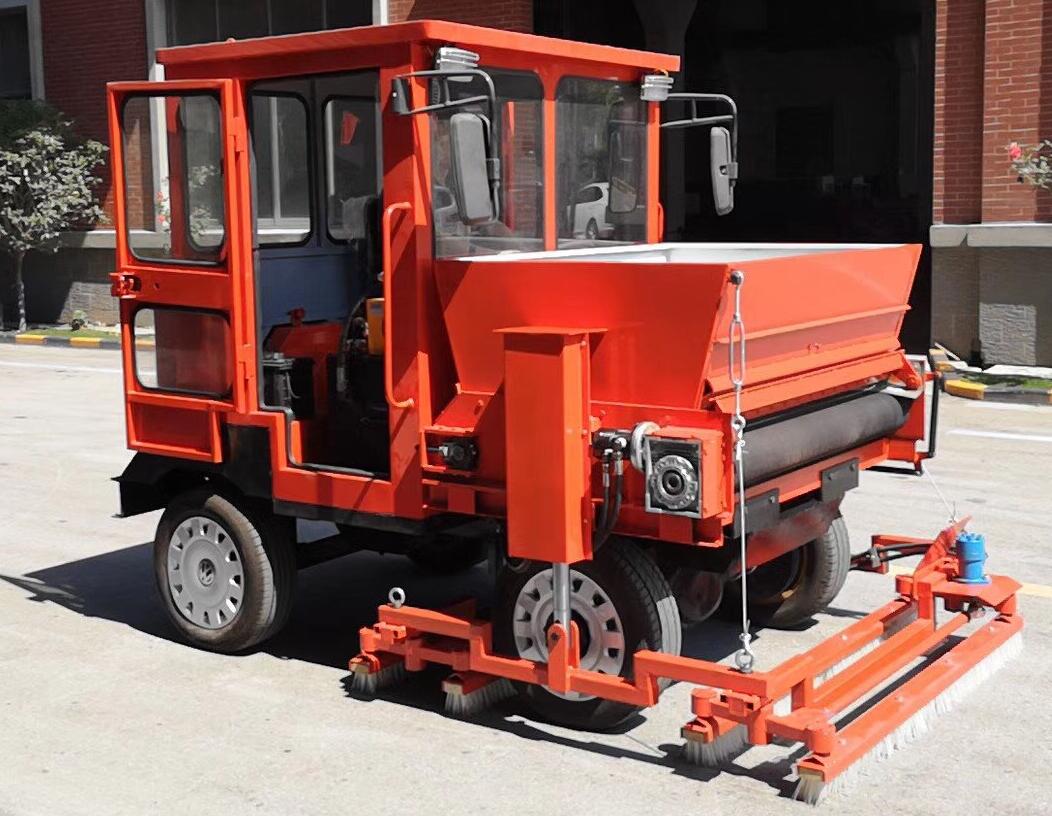

- The hopper on the machine is structured in a welded steel way. The hopper discharge can be adjusted angle to control the output material speed.

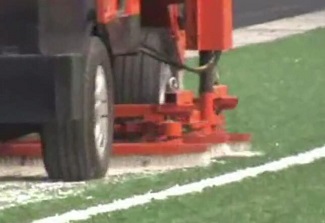

- There are one set of brush in the front and back of the hopper separately. The brush can reciprocating move at lateral direction. This feature makes this machine infill materials evenly into grass that fallen at different directions.
- The thickness of infill materials can be adjusted because this two sets of brush can be raised height by a hydraulic ram. If you raise the brush to the highest position, this machine is suitable to move at high speed and do the loading and discharging works.
