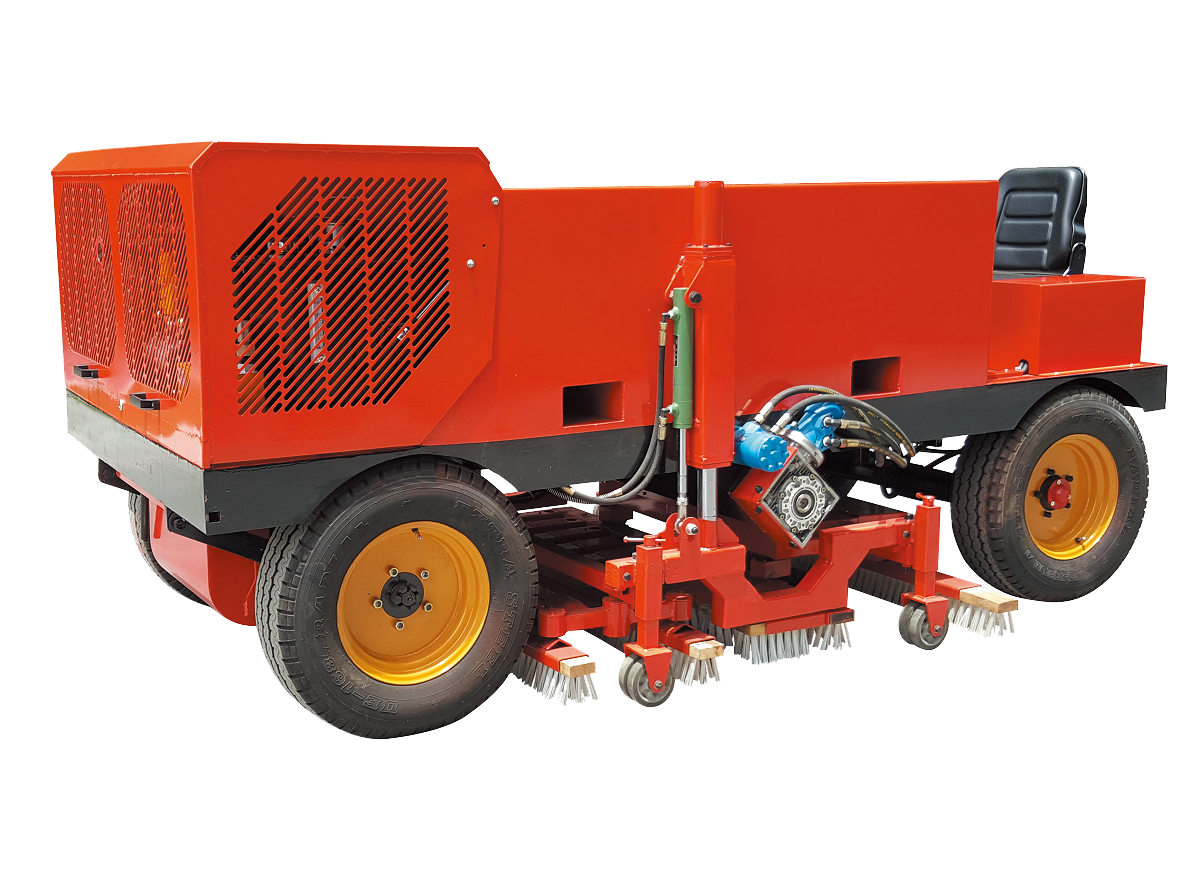

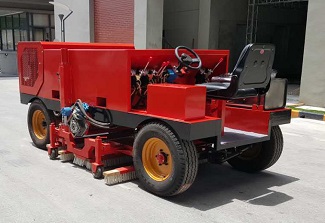

- This new designed ride-on sand filling and brush machine is used to infill and brush the silica sand or rubber granules into the artificial grass. It can infill the materials quickly and homogeneously,which greatly improves the work efficiency.
- This automatic self-driven machine sand filling and brush machine works by combination of machinery and hydraulics. It is powered by the gasoline engine. The movement of this machine is mechanical transmission and accordingly the filling and brush function is controlled by hydraulics.
- The machine can move at a constant speed. It can move for one to sixteen meters when working. One to ninty five meters can be reached when the machine is empty. So it can moves very fast if you need. The speed can be adjusted by the gears.The silica and rubber materials is transmitted by conveyor belt, then the oscillating brush will brush the silica or rubber granules into the bottom of the grass fibers. The equally distributed silica can effectively fix the grass fibers and make it straight, and the rubber granules will provide sufficient elasticity on the fields and protect players from inquiry.
Specification:
- Name: Ride-on self-driven sand filling machine
- Power system: Gasoline/25HP
- Driving device: Imported Kohler engine from USA
- Working width: 1400mm
- Weight: 1650kg
- Loading capacity: 1500kg
- Moving speed: 1-16m/minute(As per set speed)
- Empty moving speed: 1-95m/minute
- Dimension:3060Lx1800Wx1370H
Features:
- This machine is powered by Gasoline. The engine is Kohler brand imported from USA.
- The ride-on infill machine is an automatic self-driven machine. It can infill the sand and rubber with proper quantity and make the artificial grass surface perfect for training or playing. No matter for the 40mm or 60mm artificial grass pile height, it proves work excellent.

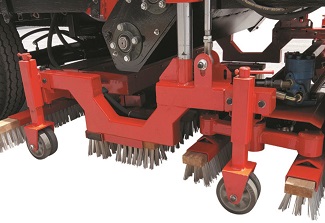

- The brushes under the machine move at rotation direction. This feature makes this machine perfect to work silica sand or rubber granules evenly into any grass that fallen at different directions. Also the hanging brush can be adjusted depth in advance.

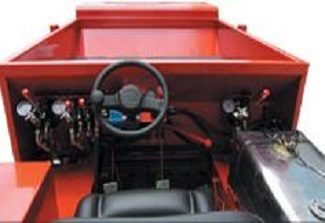

- The seat is adjustable to help the operator to work more comfortable.
